Automated chicken raising equipment, as the name implies, is that farmers can use automated chicken raising equipment to not only reduce the labor cost of chicken farms, but also complete various tasks of chicken farms. It is a "good helper" for farmers in large-scale farming. When using automated equipment to raise laying hens, which equipment is essential?

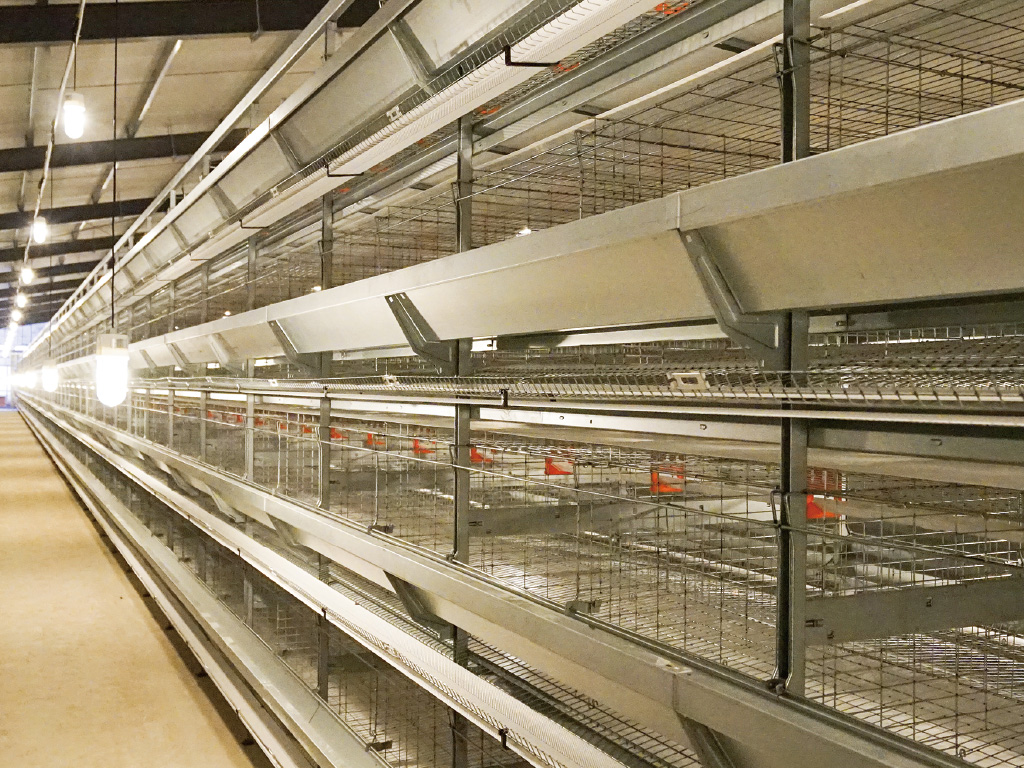

Cage rack, chicken coop equipment

Cage frame: It is a bracket that bears the cage body, which is composed of beams and diagonal braces. Beams and diagonal braces are generally made of angle steel or channel steel with a thickness of 2 to 2.5 mm. The chicken cage is made of cold drawn steel wire by spot welding, then galvanized and then assembled, including the top net, bottom net, front net, rear net, partition net and cage door. The cage and chicken cage are the main part of the chicken raising equipment.

Manure cleaning equipment

The automatic manure cleaning equipment is to clear the chicken manure out of the chicken house to a designated place. There are commonly used belt automatic manure cleaning machines and scraper automatic manure cleaning machines. It is best to clean the chicken manure once a day to prevent the ammonia gas in the chicken house from being too heavy. .

Feeding equipment

In the past, feeding chickens was all manual work, and the workload was very large. Now it can be said that raising chickens is very easy. The feed is stored in the feed tower, and the automatic feeder in the chicken house automatically fills the feed to feed the chickens at regular intervals. Even if no one is on the chicken farm for 3-5 days, the chickens will not starve to death.

water feeding equipment

The drinking water in the automatic feeding equipment is also automatic. There is an automatic drinking fountain in each chicken coop. When the chicken wants to drink water, it will peck, and the water will flow out as soon as it is pecked, and the chicken can drink the water.

Egg collection equipment

In a chicken coop with 50,000 chickens, if 2 workers collect eggs manually, they will not be able to collect them for a day. However, using an automatic egg picking machine to collect eggs can be completed in about 2 hours. How much manpower can be saved is calculated by yourself.

Temperature control equipment

Temperature control equipment is also a key part of automation equipment. In autumn and winter, the air needs to be ventilated, and fresh air must be inhaled into the chicken coop. In hot summer, negative pressure ventilation is used to discharge the heat to assist the cooling of the wet curtain, so that the The house is always maintained at a comfortable temperature to ensure the laying performance of the laying hens.

lighting equipment

According to different production purposes, choose the appropriate light color for light management. For example, when it is necessary to purposefully increase the number of eggs or increase the egg weight, artificial light can be used with red light or blue light. It is best to use a special lamp for breeding.

Generator equipment

Adopt closed house, in case of a sudden power failure, the exhaust fan and water curtain in the chicken house will not be able to operate normally for a while. If the treatment is not timely, the chickens will die to varying degrees and cause unnecessary economic losses. Therefore, it is recommended that farmers must be equipped with emergency generators.
